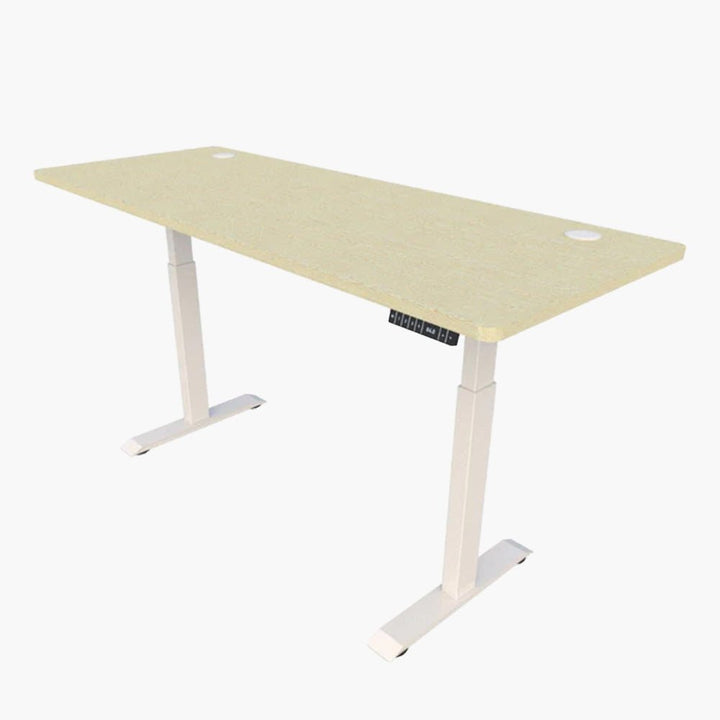

A6-N3 Plus Standing Desk
A6-N3 standing desk，adjustable range : 625~1275mm, design for high standard business use. 10 years warranty period with home repair and maintenance.
Dec Promotion:
-No surcharge on custom standing desk. (80-200cm width)
-Enjoy 30% off on regular price chair when purchase standing desk together.
-Get a free Metal Cable Tray and USB Cable Thru Cover when purchase standing desk. (Value :$348) *Will add to shopping cart automatically
- Get a free "Magnetic Cable Management Channel” after you take a photo and upload to Facebook.
A6 Series Plus TT Model Standing Desk User Guide
Simple torch control panel
7 Button operation, including up, down and memory settings.
4 Heights memory button.
Height display for precise height adjustment.
Enjoy lasting durability more than 20,000 uses.
Smooth start and stop operation
A6-N3 comes with a dual-motor design.
Ease your standing desk into the perfect height with the speed of 38mm/s without making too much noise.
Height Range: 625mm to 1275mm (not included the desktop)
Anti-collision Load Rebound
When encountering obstacles, it will rebound to prevent property damage or body injury. The anti-collision system is triggered when the desk is not balance over 0.7 degree to protect you can work in a safe and stable environment. The sensibility is changeable by pressing “M” + “2”, then choose 2 ~ 4 (2 is the most sensitive), or 1 for turn off the anti-collision system (not recommended for most case).
Safety Lock Function
This safety feature allows you to lock the control panel to prevent unwanted operations of the desk. Press and hold “3” and “4” for 3 seconds to turn on/ off the safety lock function.
Durable (Black / White)
The steel frames are coated with durable powder coating in color of black or white.
Width Adjustable
The frame is width-adjustable, going from 800 to 1800mm, and allowing you to custom-set the spacing between the legs when you construct your desk.
Comparsion between Different Models of Standing Desks
| Size |
1m x 0.6m, 1.2m x 0.7m, 1.5m x 0.7m, 1.8m x 0.7m, 1.2m x 0.6m, 0.8m x 0.6m |
|---|---|
| Desktop Colour |
Warm White, Maple Color, Gray Oak Color, 黑色, 楓木, 灰橡木 |
| Frame Colour |
White, Black |
Desktop size：Width： 800/1000/1200/ 1500/ 1800mm; Depth： 700mm (size can be customized for order 5 sets +)
Height Range： 625mm ~ 1275mm (not including the desktop)
Base Frame Width： 110cm ~ 160cm
Max. speed： 38 mm/s
Lift Capacity： 120 kg
Thickness of the board: 25mm
Duty Cycle： max 2 minutes on / 18 minutes off
Input Voltage： 100 ~ 240v
Output Voltage： 24V DC2.0A
Desktop Colour：
Frame Colour :
10 Years for the frame; 10 Years for electrical parts.
